USB總線，100MHz采樣，16路數(shù)字波形發(fā)生器

GP-24116 is a USB 2.0 high speed digital patter generator, logic analyzer and bi-directional protocol (SPI/I²C) host adapter.

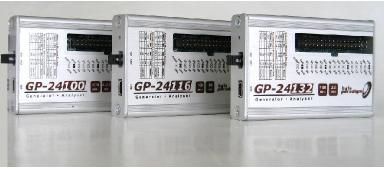

GP-24116 is the mid-range of GP Series GP-241xx devices.

GP-241xx devices differ by the included embedded memory buffer.

With its plain 16 MByte embedded memory buffer, 100 MHz operation on all 16 digital lines, and a sustained USB throughput up to 30 MByte/s, the GP-24100 is a powerful general purpose and evolutive PC-based solution that ideally complements your lab equipment for digital electronic system design, test and debug.

With its ADWG / pattern generator mode of operation, the GP-24116 allows you to generate extended depths of arbitrary digital stimuli, directly from a PC through a USB connection.

Conversely, the Analyzer mode of operation transforms the GP-24116 into a simple logic analyzer to collect and analyze digital data.

With the GP-24116, generating and collecting digital data to stimulate and analyze electronic systems have never been easier. Moreover, the provided 8PI Control Panel software offers free rich graphical, scripting (TCL/tk) and programming (C/C++) interfaces to automate tasks and make a bridge between your own programming environment and a real hardware prototype.
