32通道，16位，40MHz/s,同步數據流盤系統

生產廠商： 迪陽公司代理 產品型號： Acqui-REC
產品簡介： 4~~32通道，40MS/s 采樣，16位分辨率，20MHz帶寬，64MB存儲。

售價：￥0

連續數據記錄系統
記錄通道由4通道~~32通道（可變）

32 Channels synchronous at up to 40MS/s per channel
16 Bit of resolution
Up to 20 MHz Bandwidth
64M Samples per channel

Software
AcquiFlex, Oscilloscope software

Time & Frequency domain display
group of 8 channels
Zoom on time display
Automatic measurements
Persistence mode
Cursor
AutoSave mode
Save & Restore Setup

	Description

The Open Platform AcquiREC provides at low cost per channel, high technology 16 bit digitizers for high speed, high accuracy recording up to 40MS/s.
AcquiREC offers a versatile front end with differential inputs, large number of vertical ranges and extend triggering.

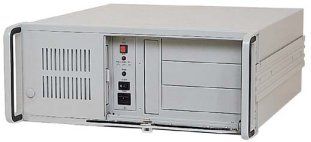

AcquiREC data recorder includes a data acquisition sub-system with up to 8 modules Master/Slave of 4 channels each, up to 512Mbytes of embedded SDRAM (maximum of 128Mbytes per channel) and a high performance rack mount computer.

AcquiREC multi-channels recorder is controlled by the easy to use AcquiFlex software offering all features necessary for a fast hands on, efficient data recording, analysis and saving.

	Ordering Information

10MS/s version

AcquiREC-4-10 , 4 channels Recorder, 10MS/s, 512 Mbytes
AcquiREC-8-10 , 8 channels Recorder, 10MS/s, 512 Mbytes
AcquiREC-16-10 , 16 channels Recorder, 10MS/s, 512 Mbytes
AcquiREC-32-10 , 32 channels Recorder, 10MS/s, 512 Mbytes
20MS/s version

AcquiREC-4-20 , 4 channels Recorder, 20MS/s, 512 Mbytes
AcquiREC-8-20 , 8 channels Recorder, 20MS/s, 512 Mbytes
AcquiREC-16-20 , 16 channels Recorder, 20MS/s, 512 Mbytes
AcquiREC-32-20 , 32 channels Recorder, 20MS/s, 512 Mbytes
40MS/s version

AcquiREC-4-40 , 4 channels Recorder, 40MS/s, 512 Mbytes
AcquiREC-8-40 , 8 channels Recorder, 40MS/s, 512 Mbytes
AcquiREC-16-40 , 16 channels Recorder, 40MS/s, 512 Mbytes
AcquiREC-32-40 , 32 channels Recorder, 40MS/s, 512 Mbytes
Standard Accessories

User's manual
Euro or US Power cord
Traceable Certificate of Calibration
Optional Accessories

17" LCD Flat Display
