4.4GHz,基于PC的USB接口虛擬頻譜分析儀

產品特點：

?  RF 頻率范圍： 1 Hz 到 4.4 GHz

?  在 500KHz 以上可以得到的噪聲增益

?  寬的動態范圍： -151 dBm 到 +10 dBm

?  分辨率帶寬（ RBW ）： 0.1 Hz 到 250 KHz 、 5 MHz

?  包括一個高的動態測量范圍的接收機

?  0.25dB 的相對精度

?  0 dBm 到 -125 dBm, 150 KHz 到 1 GHz

?  0 dBm 到 -115 dBm, 1 GHz 到 4.4 GHz

?  可調的數字音頻濾波器

?  準確的 AM 和 FM 測量

?  不需要外部的電源供給 - 從 USB 口獲得能量

?  在 PC 機上使用強大的數字信號進程

?  軟件和硬件一起只需一個低的價格

?  其他第三方軟件包可用

?  TSCM 軟件可用，并且已經作為 "Kestrel TSCM 軟件 " 上市

?  在我們的免費應用編程程序接口上寫您自己的軟件

?  I/O 數據高達 240KHz 帶寬

?  頻率掃描高達每秒 140MHz

?  與 Windows 操作系統兼容

?  建議使用 Windows XP 和更新版本

?  AM 和 FM 解調測量

?  USB 2.0 通信在 480 MBPS

?  實時解調 AM/FM/SSB/CW 音頻

?  自動使用我們的 API

?  測量距離 8 英寸

?  重量 10 盎司

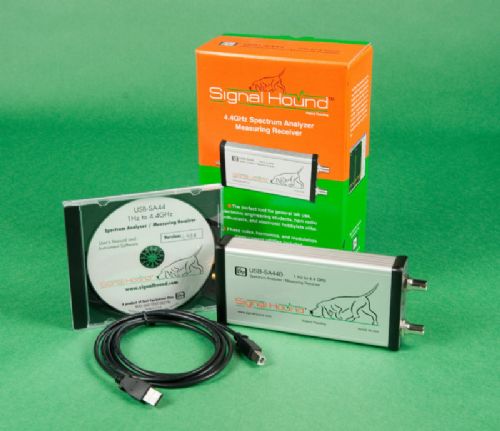

The Signal Hound USB-SA44B is a Software Defined Radio (SDR) optimized as a spectrum analyzer. It is compact, simple to use, and an effective troubleshooting tool for general lab use, engineering students, ham radio enthusiasts, and electronics hobbyists. Using recent innovations in RF technology, the Signal Hound has the sensitivity, accuracy and dynamic range you抎 expect in a unit many times its cost.

The original USB-SA44 has sold out! Our new "B" model has added a preamplifier for improved sensitivity and reduced LO leakage. There is also a thermometer for temperature corrections, allowing accurate amplitude measurements over the entire operating temperature range.

We offer a one year manufacturer's warranty and a 30 day Money Back Guarantee. If you are not completely satisfied with your Signal Hound, return it within 30 days for a full refund minus shipping cost.

Discuss the Signal Hound at our new Signal Hound Discussion Group on Facebook

Please note: The Signal Hound is not intended for use with spread spectrum signals. If your modulated signal is wider than 20 MHz, amplitude accuracy is not guaranteed. Frequency-hopping and pulsed signal measurements may require special settings.

Features
RF Frequency Range: 1 Hz to 4.4 GHz
Low noise amplifier available above 500 KHz
Wide dynamic range: -151 dBm to +10 dBm
Resolution bandwidths (RBW) of 0.1 Hz to 250 KHz and 5 MHz
Includes a High Dynamic Range Measuring Receiver
0.25 dB relative accuracy
0 dBm to -125 dBm, 150 KHz to 1 GHz
0 dBm to -115 dBm, 1 GHz to 4.4 GHz
Adjustable digital audio filters
Accurate AM and FM measurements
No external power supply needed - draws power from USB
Powerful Digital Signal Processing happens on the PC
Software and Hardware included for one low price
Additional Third-Party Software Packages are available
TSCM software is available, and is being marketed
as "Kestrel TSCM Software" through
Write your own software with our free Application Programming Interface (API)
I/Q Data up to a 240 KHz bandwidth
Frequency Sweeps up to 140 MHz per second
Compatible with Windows operating systems
Windows XP or newer recommended
AM and FM Demodulation Measurements
USB 2.0 communications at 480 MBPS
Demodulates AM/FM/SSB/CW audio in real-time
Automation capability using our API
Measures 8 inches long
Weighs 10 ounces
